Your Mercedes-Benz SmartKey does a lot: it unlocks the doors, starts the car and, on many models, opens the trunk or starts the engine remotely. Like any battery-powered device, it eventually needs a fresh battery. The good news is that it's a five-minute job.
Signs Your Key Fob Battery Is Low
- You need to press the buttons more than once, or stand closer to the car, to lock or unlock it.
- Keyless entry or KEYLESS-GO start works only some of the time.
- Your instrument cluster shows a message to replace the key battery.
Which Battery Does My Key Use?
| Key style | Common battery | How to recognize it |
|---|---|---|

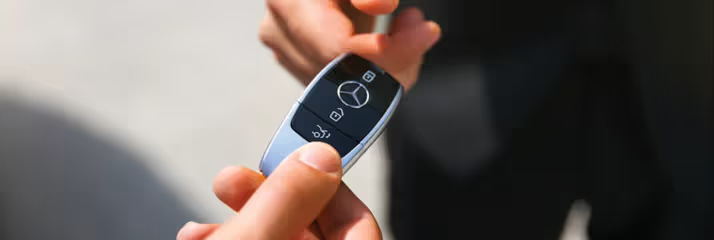

| Newer SmartKey | One CR2032 coin cell | Slim, rounded design with a chrome or gloss-black finish |

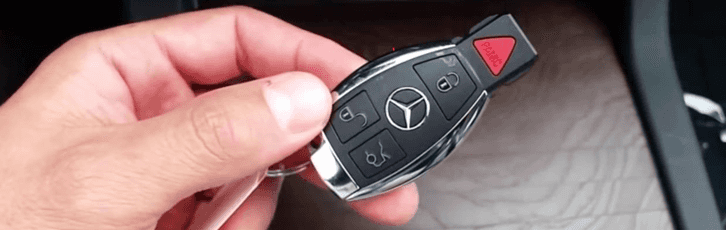

| Older SmartKey | CR2025 coin cell (some versions use two) | Square top with a separate red panic button |
| Digital Vehicle Key | No key battery (uses your phone) | Standard on some newer models, such as the 2026 C-Class |
Batteries vary by model year, so double-check your owner's manual or the battery you remove before buying a replacement.
Newer SmartKey: Step by Step

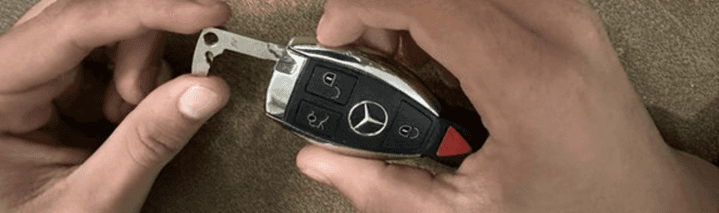

- Release the mechanical key. Slide the release tab and pull out the metal emergency key.
- Open the cover. Use the tip of the emergency key in the slot to gently pry off the back cover.
- Remove the old battery. Slide out or lift the CR2032 from its holder.
- Insert the new battery with the + side facing up, as marked.
- Reassemble and test. Snap the cover on, replace the mechanical key and test lock and unlock.
Older SmartKey: Step by Step
- Remove the mechanical key by sliding the release latch at the end of the fob.
- Open the battery compartment. Insert the mechanical key into the opening and push to release the battery holder.
- Swap the battery or batteries, matching the + and − markings in the holder.
- Close it up and test the lock and unlock buttons.
Still not working? The most common cause is a battery installed upside down. Open the fob again and check that the + side faces the way the holder shows.
Dead Key? Use the Emergency Key
Every SmartKey hides a metal emergency key. Slide the release tab, remove the key and use it in the driver's door lock. On some models, the lock cylinder sits behind a small cap on the door handle that you can gently pry off. Your owner's manual explains how to start the vehicle if the key battery is completely dead.
When to Visit the Dealership
If a fresh battery doesn't fix the problem, the key may need to be resynchronized, repaired or replaced. Our guide to Mercedes-Benz key programming explains your options, and our Parts Department can check your key and supply genuine replacement batteries.
Keep Reading
We're Here to Help
Stop by our Parts & Service team at 7055 N Palm Ave. Call Service at (559) 420-7390 or Parts at (559) 785-3178.
For general information only. Key designs and battery types vary by model and year; refer to your owner's manual.
